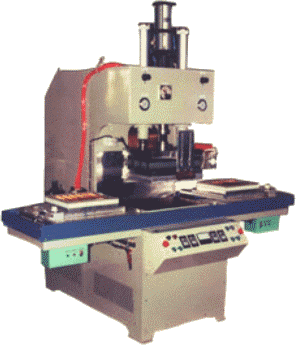

HYDRIALIC TYPE HIGH FREQUENCY WELDING & CUTTING MACHINE
@

@

Application
For PVC and PVC toothbrush packing or PVC and Paper toothbrush packing
Features

The machine is designed for simultaneous welding and cutting 6 brushes
Specifications
Power 3P220/415V
50/60HZ
Input Power 25KVA
H.F.Out-put Power 15KW
Operating Frequency 27.12MHZ
Packing Area 350x450m/m
Packing Capacity 3~4time/min
Mechanical Dimensions(LWH)(mm) 210019502000mm
Case Dimensions(LWH)(mm) 2150100021701mm 23009007001mm
N.W. 1050Kgs
G.W. 1200Kgs
