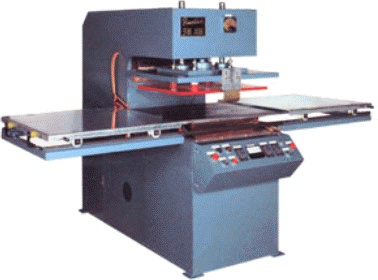

HIGH FREQUENCY WAVE PLASTIC WELDING MACHIN |
|
Application |
| ¡¿ |
For PVC and PVC toothbrush packing. |
|
Features |
¡¿
|
The machine is designed for simultaneous welding and breaking 6 PVC and PVC toothbrush when processed or welding PVC and Paper toothbrush packing. |
|
Specifications |
|
Power |
3P 220/415V 50/60HZ |
|
Air Pressure |
3HP |
|
Max. Power Requlrement |
15KVA |
|
Max. Output |
8KW |
|
Operating Frequency |
27.12MHZ |
|
Packing Capacity |
3-4Time/Min |
|
Packing Area |
350¡Ñ450 m/m |
|
Machine Size |
2600¡Ñ1700¡Ñ1900mm |
|
Case Size |
1900¡Ñ1000¡Ñ2100¡Ñ1mm 2800¡Ñ800¡Ñ500¡Ñ1mm |
|
N.W. |
850kgs |
|
G.W. |
1000kgs |
|
