| PROPOSAL OF TOOTHBRUSH MAKING PLANT設廠需知 | ||
|

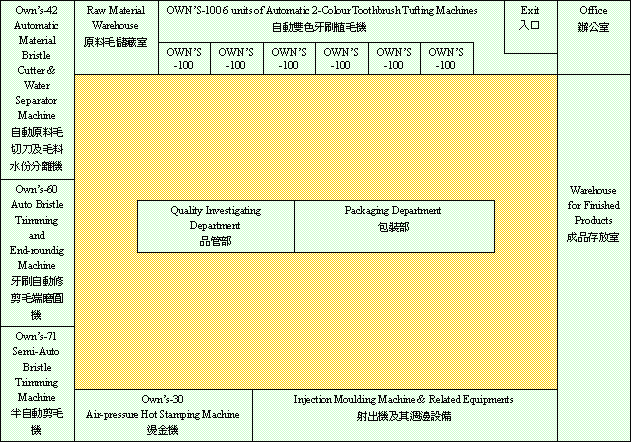

| 1. PLAN LAYOUT/整廠規劃圖(10M×25M) |
 |
| 2. MACHINERY & EQUIPMENTS REQUIRED機器需要量 | |||||||
| Description 機器品名 |
Quantity 數量 |
Capacity 產量 |
Man power required 人力 |
Motor 馬達 |
Kilowatts 消耗電力 |
Voltage 電壓 |
Hertz 電量 |
| Injection Moulding Machie & Related Equipments 射出機及其週邊設備 |
2 Unit (台) |
1 injecting impression/40 sec.,700~800 impressions/8hrs.daily 8hrs.×60min. ×60sec.÷40sec. ×8pcs×2=115250pcs 40秒開模一次，一日可開700~800模 |
(Workers) 1~2人 |
15HP×2(4.5OZ) | 10KW×2 | Three Phase 三相220v |
50HZ or 60HZ |
| OWN'S-10 8 Cavities Handle Mould 8穴模具 |
2 Moulds (模) | ||||||
| OWN'S-42 Automatic Material Bristle Cutter & Water Separator M/C 自動原料毛切刀及毛料水份分離機 |
1Unit (台) |
Having material bristle cut for 1 hr. per day 一天切毛一小時即可 |
1/2HP×2 | 0.375KW×1 | Single Phase 單相220v |
50HZ~60HZ | |
| OWN'S-100 Automatic 2-Colour Toothbrush Tufting M/C 自動雙色牙刷植毛機 | 6 Units (台) | 250 tufts/min. ÷42 holes×60min. ×7hrs. ×6units≒15000pcs | (Workers) 2人 |
1/4HP×6 | 0.19KW×6 | Single Phase 單相 220v |
50HZ~60HZ |
| Own's-60 Auto Bristle Trimming and End-rounding M/C (Flat type) 牙刷自動修剪毛端磨圓機(平形) |
1 Unit (台) |
3600pcs/hr. ×8hrs.≒28800pcs | (worker) 1人 |
2HP×2 | 1.5KW×1 | Single Phase 單相 220v |
50HZ~60HZ |
| Own's-71 Semi-Auto Bristle Trimming M/C(Waved type, etc) 半自動剪毛機(波浪等型) |
1 Unit (台) |
1200pcs/hr. ×8hrs.=9600pcs | (worker) 1人 |
1/3HP×2 | 0.25KW×1 | Single Phase 單相 220v |
50HZ~60HZ |
| Own's-30 Air-pressure Hot Stamping M/C 燙金機 |
1 Unit (台) |
1500pcs/hr.hr×8hrs.=12000pcs | (worker) 1人 |
1HP×2 | 0.75KW×1 | Single Phase 單相 220v |
50HZ~60HZ |
| Packing Machine & Related Equipments 包裝機及其週邊設備 |
視何種包裝形式而定 It depends on what types of packing will be picked up. |
(Workers) 8~10人 |
|||||
| Air Compressor 空壓機 |
1 Unit (台) |
2HP for InjectionMoulding M/C射出機 & Air-pressureHot Stamping M/C燙金機3 HP for T/brushMaking M/cs牙刷機械設備 | 3.75KW×1 | Three Phase 三相220v |
50HZ or 60HZ | ||
| 3. RAM MATERIAL REQUIRED原料需要量 | |||
| Raw
Material of Handle (PP CA or ABS)刷柄原料 |
Material
Bristle (Nylon-612 杜邦尼龍毛)刷毛原料 |
Flat
Brass Wire 扁黃銅線 |
|
| Capacity 產量 |
120pcs(枝) | 654pcs(枝) | 4760pcs(枝) |
| 1kg(公斤)(PP) | 1kg(公斤) | 1kg(公斤) | |
| Consumption/8hrs.
daily 每日8小時所需消耗量 |
16000pcs÷120pcs≒133kgs (公斤)(PP) |
16000pcs÷654pcs≒24.5kgs (公斤) |
16000pcs÷4760pcs≒3.4kgs(公斤) |
請寄你們所要生產的牙刷樣品，每一樣式各兩支給我們。並告訴我們每一樣式８小時所需要的產量。我們將會提供正確的機械數量給你們。
If you want to get the correct detailed production information, please send 2pcs of each samples of your required production toothbrush and tell us about your required production capacity of each sample per 8 hours, then we will evaluate and offer you the correct detailed information of required machinery.
